Rig Well Energy Services
Service King 1000 Rigs with 450,000 lbd Mast and 117′ Height
• These rigs can perform all operations from Completions to Production with a hook load that outperforms others in the same market
• Completions package provides equipment that is overkill for most jobs, but provides a piece of mind for safety and less downtime
• Operators platform goes to 40’ to reach any well height
• Capable of drilling shallow wells
• 450,000# hook load can pull casing when other rigs need assistance from casing jacks, which is not favorable due to safety factors involved.
• In slow times, we will stay busy on production wells because these rigs can perform all the work requested
• The rig derrick is 117’ which reduces crown outs and provides plenty of room and piece of mind for the operator and company man
• Sub structure is available

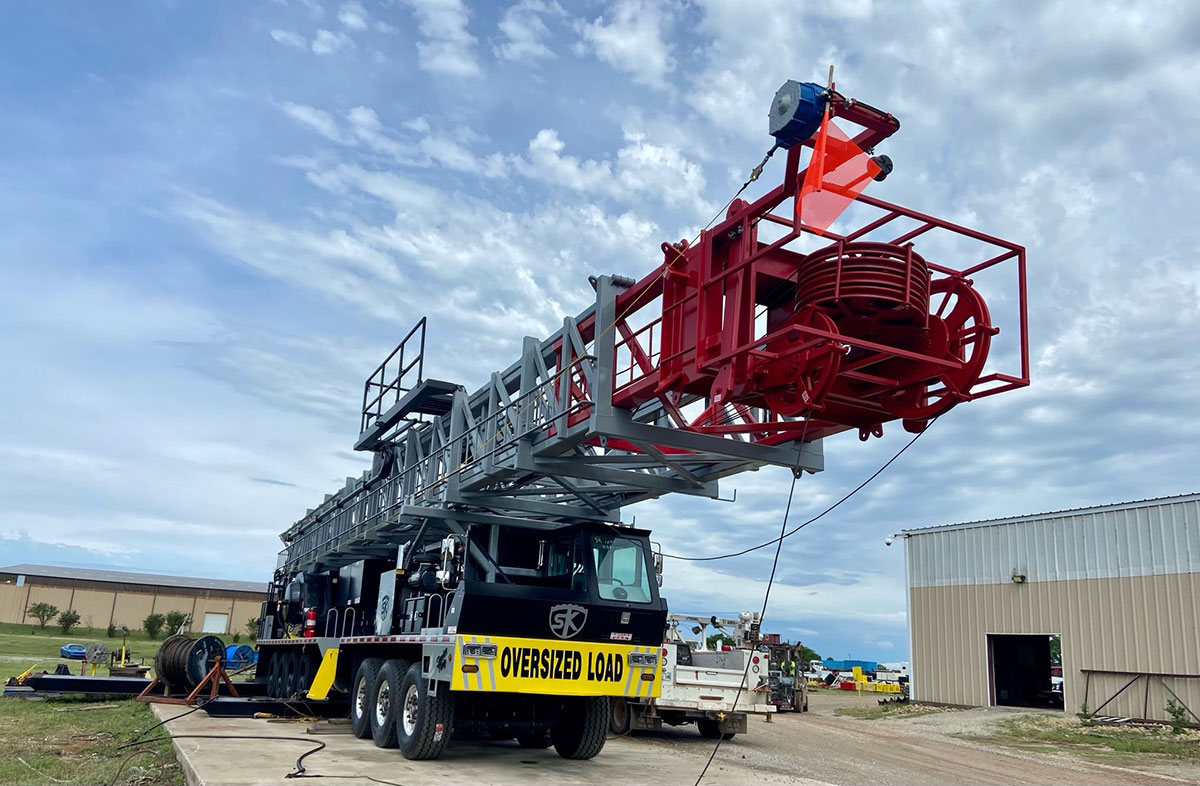

SK 1000 7 axle Rig with mast hook load capacity 450,000 lbs, powered with an MTU 550hp diesel engines with two Allison 6061 RB transmissions with torque converter. Mast is 117ft. All equipment is mounted on seven axle SK carrier. Rig equipped with telescoping substructure with a max height of 40ft.
XK150 PowerSwivel
10,000 psi Wash pipe Seal Assembly
Our patented seal assembly is rated at 10,000 psi. It is automatically pressure-lubricated so requires no greasing. This is a uniquely engineered design, very different from other sealing concepts using metal rings and rubber V-rings. We have received happy field reports of 1200 – 2000 hours before changing seals. Nonetheless, we continue engineering and we expect seal life to improve greatly.
Swivel Tilt
XK power swivels include our patented power tilt function. The driller easily sets the tilt angle stop at rigup to match the pipe angle in the V-door, then the swivel tilts to the same angle throughout the job when he clicks the handle forward. Clicking to the rear position floats the pipe to vertical during pick up. When tilt is not in use, the power swivel is hydraulically held vertical for easy stab with no need for a rope or chain. Our customers are very pleased with the safety benefits and time savings.
XK-150 Specifications
|
Max Torque |
12,000 FT-LBS |
|
Max Speed |
160 RPM |
|
Max Static Load Rating |
150 TONS |
|
100 RPM Dynamic Load Rating |
150 TONS |
|
Max Circulating Pressure |
10,000 PSI |
|
Gooseneck Connection |
3″ 1502 Union |
|
Fluid Passage Bore Thru Stem |
2-7/16″ I.D. |
|
Standard Stem Connection |
4″ FULL HOLE |
|
Standard Saver Sub Connection |
3-1/2″ I.F. |
|
Saver Sub Makeup Torque |
12,500 FT-LBS |
|
Weight |
2,800 LBS |

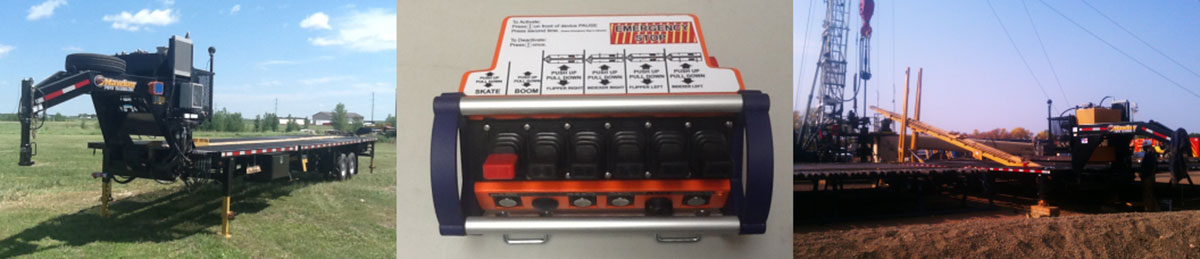

Pipe Handler
Mobile Presence
With a weight of only 20,000 lbs the Hawker Pipe Handler can easily be moved from site to site with a medium duty truck. Once on location, the Pipe Handler can easily be moved or maneuvered into place using a truck or forklift. When you are ready to relocate the Hawker Pipe Handler, simply raise the all down riggers into the travel position and within minutes you are ready to travel to the next location.
Remote Control
The Pipe Handler operator has the option of using the controls located on the on the Hydraulic Catwalk, or the included state of the art wireless remote control.
Higher Productivity
The Hawker Pipe Handler was designed to withstand the everyday wear and tear of the extreme elements that it will be operated in. The speed, efficiency and 40′ reach capacity of our machine will help increase safety, productivity, and reduce operating costs.

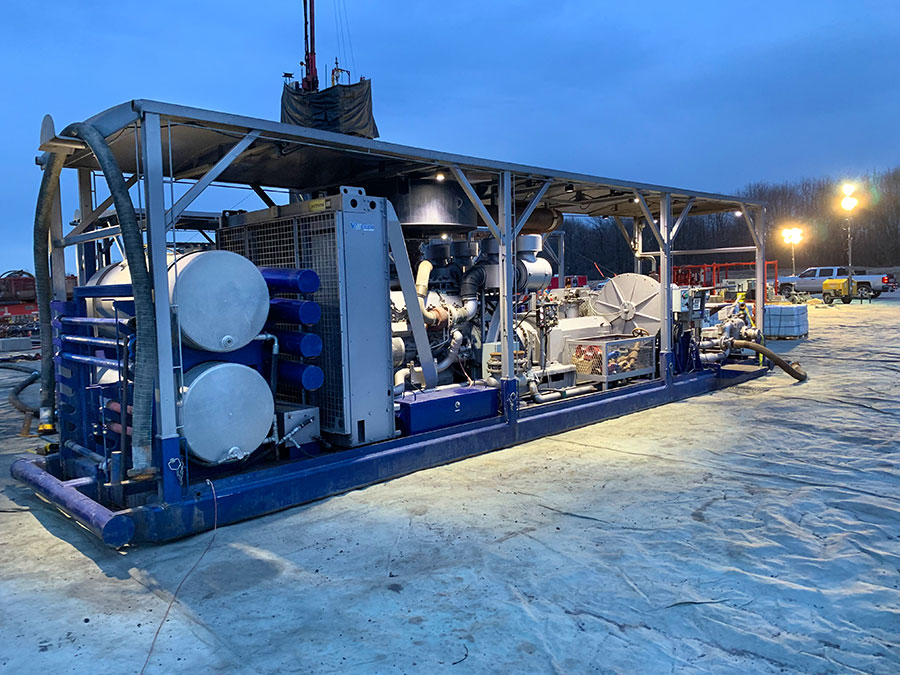

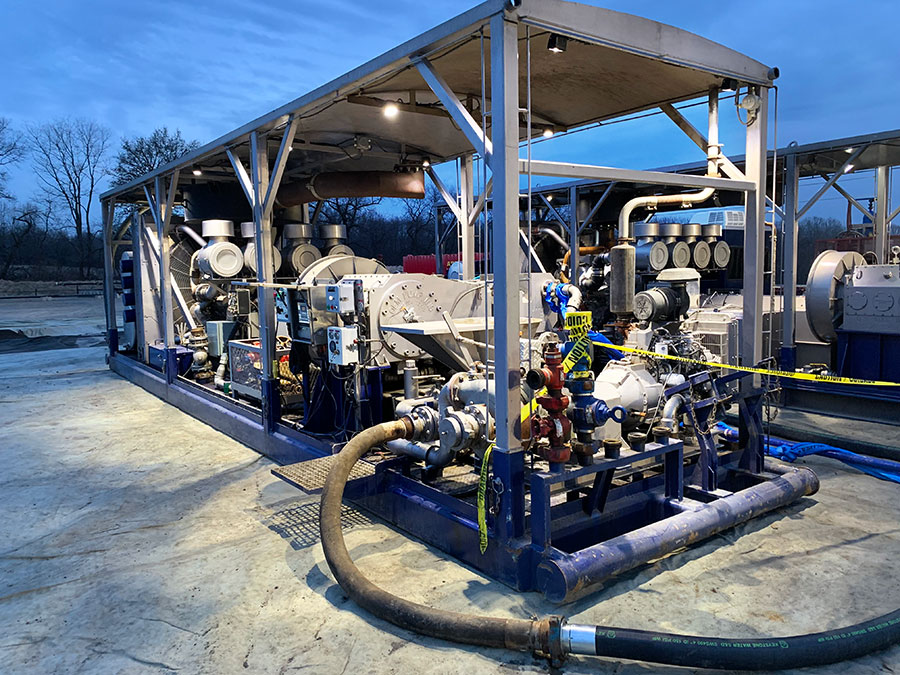

Pump Fleet
• CAT Powered C32, 1250hp Skid Pumps
• Boost Pump Mounted on the Skid
• LED Package for 24hr Work
